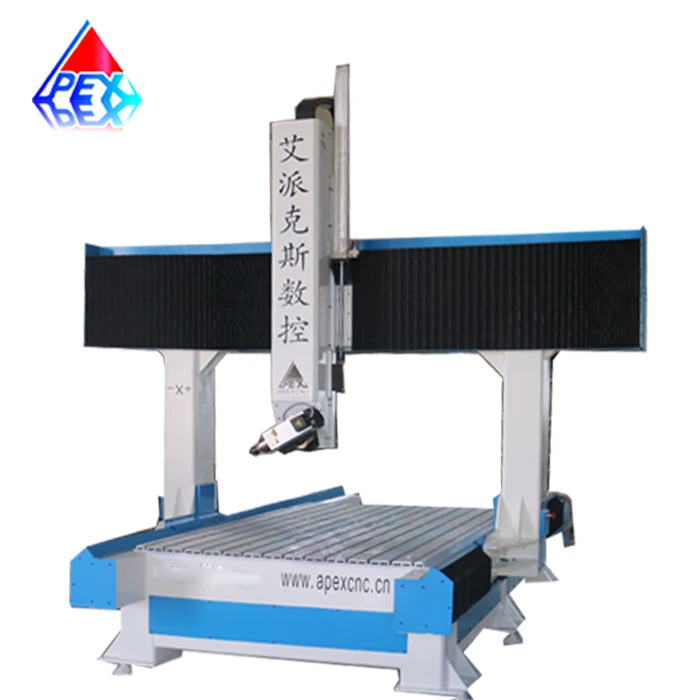

4 axis cnc router machine for wood PP PE

Issuing time:2018-12-26 14:51:19Views:
Product name:4 axis cnc router machine for wood PP PE
Manufacturer:APEXCNC
Product Category:Custom machine

Product Description

4 1325.jpg



NO.

Description

Parameter

1

Table Size

1300*2500mm

2

Traveling Positioning Accuracy

±0.05/500mm

3

X,Y,Z Repositioning Accuracy

±0.02mm

4

Table Surface

Vacuum and  T-slot Combined

5

Frame

Welded Structure

6

Transmission

Rack and Pinion Drive

7

Software

UG/Powermill


Max. Rapid Travel Rate

50000mm/min

9

Max. Working Speed

35000mm/min

10

Spindle Power

7KW

11

Spindle Speed

0-24000RPM

12

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

PS: All the working area and specifications can be customized according to your requests.


 Main configuration

B1.Italy HSD spindle 7kw
B2.Japan Yaskawa motors & drivers
B3.Taiwan HIWIN 25# Rais & slider
B4.Taiwan YYC high precision gear rack with skew tooth
B5.Taiwan syntech system
B6.Capacity:10kw
B7.High Efficiency automatic lubrication system
B8.Taiwan Delta B type inverter



Product Application




Our Services



Guarantee:

24 months for the whole machine. Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 2 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.



 After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.

Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc

Overseas service.jpg



About us

 Full range of customized models

1.Customized machine size according to product size specifications
2.Customized machine type (light or heavy) according to application industry, product attributes and specifications
3.Choose the optimal machine configuration based on budget
4.Before ordering the machine, you can go directly to our company to produce samples, compare the effects and then order
5.Provide customers with complete solutions, from design modeling, programming, fixtures, tool selection, CNC machining. Guide all-round, let you quickly master the processing technology

.jpg
